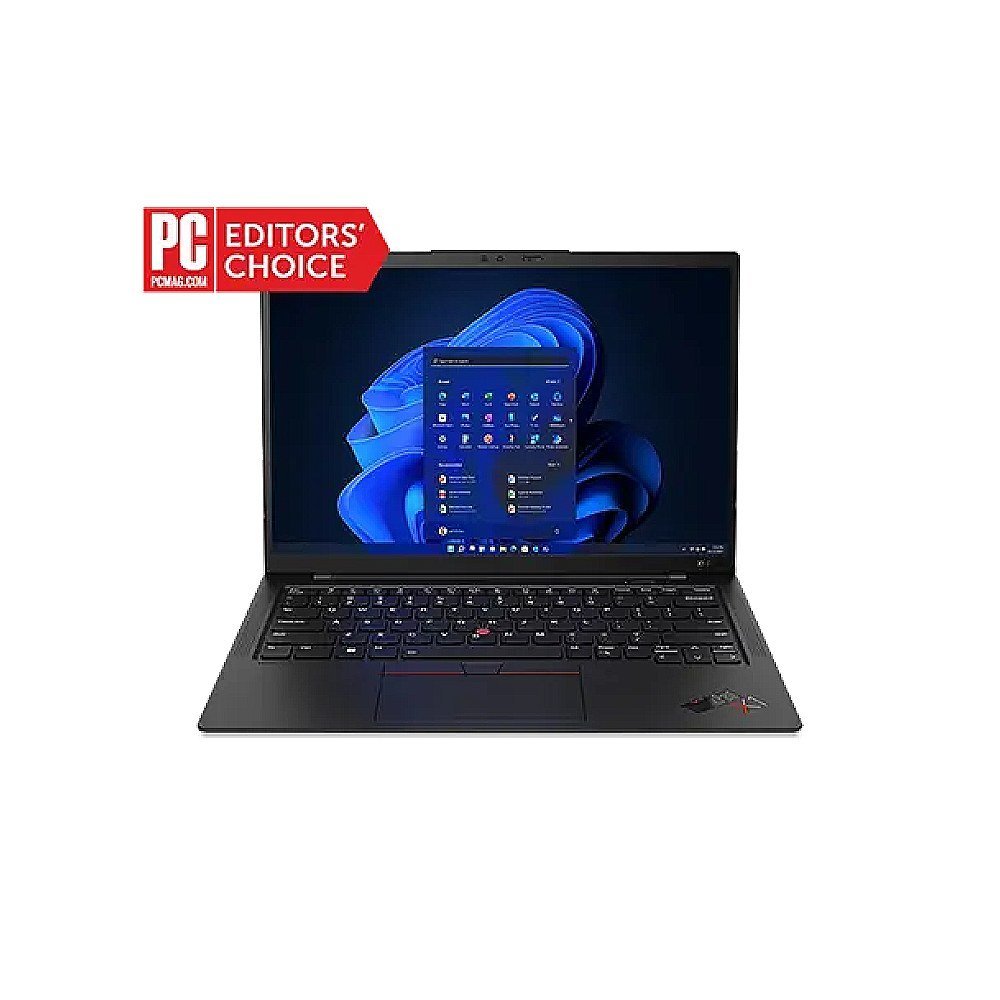

ThinkPad X1 Carbon Gen 11 (14” Intel) Laptop

PERFORMANCE

Processor

• 13th Generation Intel® Core™ i5-1335U Processor (E-Core Max 3.40 GHz, P-Core Max 4.60 GHz with Turbo Boost, 10 Cores, 12 Threads, 12 MB Cache)
• 13th Generation Intel® Core™ i5-1345U Processor with vPro® (E-Core Max 3.50 GHz, P-Core Max 4.70 GHz with Turbo Boost, 10 Cores, 12 Threads, 12 MB Cache)
• 13th Generation Intel® Core™ i7-1355U Processor (E-Core Max 3.70 GHz, P-Core Max 5.00 GHz with Turbo Boost, 10 Cores, 12 Threads, 12 MB Cache)
• 13th Generation Intel® Core™ i7-1365U Processor with vPro® (E-Core Max 3.90 GHz, P-Core Max 5.20 GHz with Turbo Boost, 10 Cores, 12 Threads, 12 MB Cache)
• 13th Generation Intel® Core™ i7-1370P Processor with vPro® (E-Core Max 3.90 GHz, P-Core Max 5.20 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache)

Operating System

• Windows 11 Pro – Lenovo recommends Windows 11 Pro for business
• Windows 11 Home
• Windows 11 Pro 64 (preinstalled with Windows 10 Pro 64 Downgrade)
• Linux Ubuntu
• Linux Fedora

Graphics

Intel® Iris® Xe Graphics

Memory

• 16 GB LPDDR5 6400MHz
• 32 GB LPDDR5 6000MHz
• 64 GB LPDDR5X 6000MHz

Storage

Up to 2TB PCIe NVMe SSD Gen 4 Performance

Battery

• 57Whr battery
• Rapid Charge (60 minutes = 80% runtime), requires 65W or higher adapter

Audio

• Dolby Atmos®
• 4 x 360-degree quad-array microphones
• Dolby Voice® certified for professional conferencing solution

Camera

• FHD RGB with webcam privacy shutter
• FHD infrared (IR) hybrid with webcam privacy shutter
• FHD + IR mobile industry processor interface (MIPI) webcam with Computer Vision & webcam privacy shutter

CONNECTIVITY

Ports/Slots

• 2 x USB-C Thunderbolt™ 4
• 2 x USB-A 3.2 Gen 1
• Headphone / mic combo
• HDMI 2.1 supporting resolution up to 4K@60Hz
• Optional: Nano SIM slot

USB port transfer speeds are approximate and depend on many factors, such as processing capability of host/peripheral devices, file attributes, system configuration and operating environments; actual speeds will vary and may be less than expected.

WiFi

• Optional: WWAN* 5G sub6 CAT20 with eSIM & physical nano SIM
• Optional: 4G/LTE CAT16 with eSIM & physical nano SIM
• WLAN: WiFi 6E** AX211 802.11AX (2 x 2) (requires Windows 11)
• Bluetooth® 5.1
• vPro®: On vPro® Processors

*Optional WWAN availability varies by region and must be configured at time of purchase; it requires a network service provider. Note that not all carriers support eSIM, so please check with your service provider. Not available in China. ** 6GHz WiFi 6E operation is dependent on the support of the operating system, routers/APs/gateways that support WiFi 6E, along with the regional regulatory certifications and spectrum allocation.

Docking

• Thunderbolt™ Dock
• USB-C 3.2 Dock

DESIGN

Display

• 14″ 2.8K OLED (2880 x 1800) 400 nits, 100% DCI P3, Eyesafe® certified low blue light, antiglare, antireflective, antismudge
• 14″ 2.2K (2240 x 1400) IPS, 300 nits, 100% sRGB, antiglare
• 14″ WUXGA (1920 x 1200) IPS, PrivacyGuard* touchscreen, 500 nits, antiglare, TÜV ePrivacy certified
• 14″ WUXGA (1920 x 1200) touchscreen, low power, IPS, 400 nits, Eyesafe® certified low blue light, antiglare
• 14″ WUXGA (1920 x 1200) low power, 400 nits, Eyesafe® certified low blue light, antiglare

For all display options, aspect ratio = 16:10. All WUXGA screens include 100% sRGB.

Dimensions (H x W x D)

• For HD camera: 14.96mm x 315.6mm x 222.5mm x / 0.59″ x 12.43″ x 8.76″
• For FHD camera: 15.36mm x 315.6mm x 222.5mm x / 0.60″ x 12.43″ x 8.76″

Weight

Starting at 1.12kg / 2.48lbs

Keyboard

• Spill-resistant
• Glass trackpad 110mm / 4.33″
• Backlit with white LED lighting
• Air intake keys

Colors

• Deep Black
• Optional: Carbon-Fiber Weave on top cover

SUSTAINABILITY

Material

• 90% recycled magnesium on C cover
• 98% post-consumer content (PCC) recycled plastic used in speaker enclosure
• 25-30% PCC recycled plastic used in the battery enclosure
• 90% PCC recycled plastic used in power adaptor
• Low-temperature solder
• Plastic-free packaging with 90% recycled and/or sustainable content*

*Packaging composed of recycled, and/or biobased, and/or sustainably forested content.

Certifications / Registries

• ENERGY STAR® 8.0
• EPEAT® Gold, where applicable*
• TCO 9

*Visit www.epeat.net for registration status by country.

OTHER INFORMATION

Security

• Discrete Trusted Platform Module (dTPM) 2.0
• Firmware shield
• PrivacyGuard with ePrivacy certification on display option
• PrivacyAlert with Glance app (requires infrared (IR) camera)
• Facial recognition login (requires IR camera)
• Fingerprint reader integrated with power button (match-on-chip)
• Webcam privacy shutter
• Kensington Nano Security Slot™
• Lock on leave with presence detection (requires IR camera)
• Microsoft Secured-core PCs (select models)

Preloaded Software

• Lenovo Commercial Vantage
• Lenovo View
• Intel® Unison™
• Intel® Connectivity Performance Suite

What’s in the box

• ThinkPad X1 Carbon Gen 11 laptop
• USB-C 65W power adapter (supports Rapid Charge)
• Internal Battery
• Quick Start Guide
